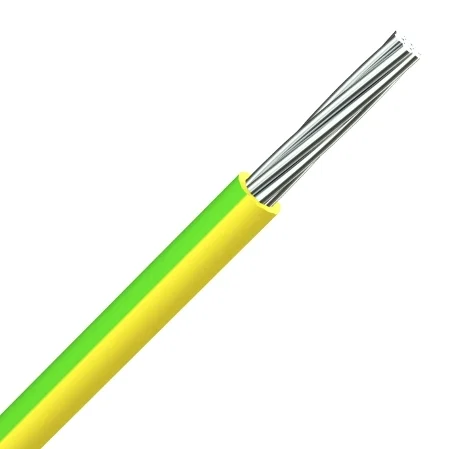

Single Core Aluminum Earthing
Single Core Aluminum Earthing - Image 2

Single Core Aluminum Earthing

Category:

CONSTRUCTION

CONDUCTORS: It is the current carrying component of the cable.
Material Stranded, high conductivity plain annealed copper wires as per class 2 in BS 60228 and IEC 60228
Aluminium, stranded, compacted conductors
INSULATION The rated voltage level of the cable depends on the dielectric strength and thickness of the insulation
Material The insulation of standard wiring cables is PVC grade Type TI 1 of BS 7655 (formerly BS 6746) suitable for a maximum continuous conductor operating temperature of 70˚C.

CHARACTERISTICS

Voltage Rating: 450/750 Volts
Temperature Rating -5°C to +70°C
Minimum Bending Radius Fixed: 6 x overall diameter

STANDARDS

BS EN 50525-2-31: For PVC Insulated Wiring
BS EN 60228 For conductor
BS 7655 For Insulation
BS EN/IEC 60332-1 For Flame Retardant

CORE IDENTIFICATION

1 core: Red, Black, Yellow, Blue, Green/Yellow. (Other Color as per specified standard can also be manufactured)
